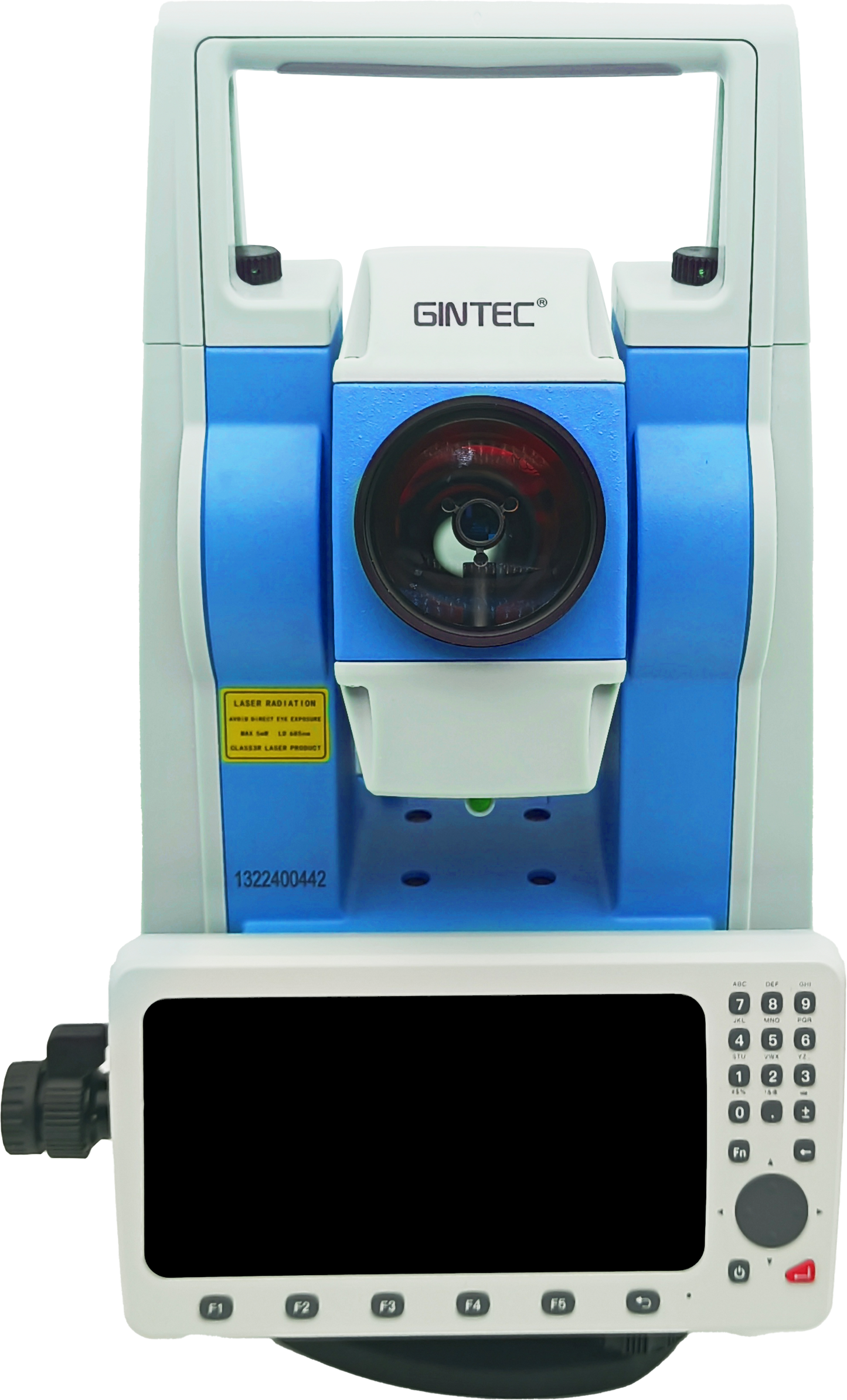

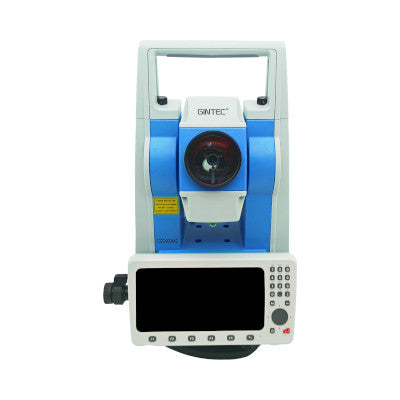

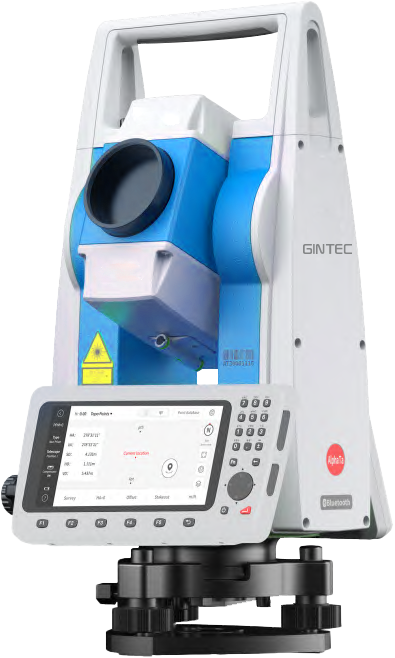

Gintec GTS12A Android Total Station
Gintec GTS12A Android Total Station
Couldn't load pickup availability
Originated from European optical technology, with special dense bead shaft system, center compensator, new generation measuring ruler and the static absolute encoding disc, GINTEC Android Total Station comes with higher quality, accurate and stable performance.
Features:
Precise Distance Measuring Technology
GINTEC can achieve fast and accurate distance measurement through built-in eight adaptive high-frequency measuring rulers and advanced phase laser ranging algorithms, meeting the accuracy requirements of various advanced engineering measurements.
Precise Angle Measuring Technology
Self-developed high-precision angle measurement system technology includes coding, high-precision code disc, linear array CCD photoelectric measurement, decoding, redundancy, calibration, multi-sensor combination algorithm and other sub-technologies, providing on-site jobs with high stability and fault tolerance.
Coaxial Comprehensive Compensation
Compensator is located directly above the vertical axis. It can quickly and accurately compensate during rotation. At the same time, CCD is used for precise calibration. The compensation range is up to 4, and the operation efficiency is extremely high
Special Grade Dense Bead Shaft System
Using customized ultra-high-precision grinder precision processing technology, the carefully selected top-grade G3 steel balls are processed through dozens of processes to create a special-grade dense ball shaft system that can meet the stringent requirements of 1″-level instruments.
Strong Protection
Excellent protective performance,powerful precision shafting electronic compensation technology and high redundancy.The angle measurement decoding algorithm allow the total station to be used in various extreme engineering environments,making measurements stable and reliable.
Specifications
Telescope
• Image: Right-reading
• Magnification: 30x
• Field of View: 1°30’
• Minimum Focus: 1.7m
• Resolution: 2.8”
Angle Measurement
• Accuracy: 2”
• Reading System: Absolute Encoders
• Minimum Reading: 1”
Distance Measurement
• Measuring: Non-Prism 1000m, Reflector 2000m, Single Prism 4000m
• Single Prism Accuracy: ±(2mm+2×10⁻⁶ ×D)
• Accuracy (Non-Prism): ±(3mm+2×10⁻⁶ ×D)
• Accuracy (Reflector): ±(3mm+2×10⁻⁶ ×D)
• Time: Fine: 0.7s, Rapid: 0.5s, Tracking: 0.3s
• Minimum Display: Fine: 0.1mm, Tracking: 0.1mm
Laser Plummet
• Accuracy: 1.5mm @ 1.5m
• Wavelength: 635nm
• Safety: Class 2
• Output Power: 0.7-1.0w
Panel
• Screen: 5.5” semi-transparent reflective touch screen
• Key: x26
• Backlight: Support
Power
• Battery Type: 3400mAh * 2 Li-ion battery
• Low Voltage Alert: Yes
• Shutdown in 10 minutes
• Working Time:
• Angle Measuring: Single Screen 20h, Double Screen 12h
• Distance Measuring + Angle Measuring: Single Screen 12h, Double Screen 8h
Compensator
• Compensator Type: Dual Axis
• Compensator Range: ±4’
• Compensator Resolution: 1”
Level Vial Sensitivity
• Tubular Level: 30’/’2mm
• Circular Level: 8’/2mm
Environment
• Operating Temperature: -20°C ~ +50°C
• Storage Temperature: -30°C ~ +55°C
• Water/Dust Proof: IP54
Note: The above technical parameters are for reference. The company reserves the right to change the design and planning of the product based on the actual product.
